前言

在上一篇通过Operator自动暴露集群内部服务中，遗留了一个问题：开发人员or业务上游是需要关注k8s内建资源，例如deployment如何定义，这和K8S自动化的目标背道而驰。
本篇文章将采用CRD（CustomResourceDefinition）来屏蔽底层K8S资源，让开发人员只需要按照我们制定的规则来定义CR即可。至于创建deployment，service，ingress等操作就可以交给Operator来完成，从而实现部署自动化。
而自动化就可以对接业务系统，使其实现业务价值。例如根据授权信息，创建租户购买的产品服务，当授权到期时，自动删除对应资源。

image-20240121174805640

主要步骤

  1. 基于k8s官方的sample-controller进行修改
  2. 定义CRD的struct
  3. 使用 code-generator 生成CR的 client, informers, listers, deep-copy
  4. 向k8s注册CR
  5. 向informer注册CR的事件
  6. 在CR的事件处理函数中，创建产品服务的deployment, service, ingress
  7. 使用controller-gen生成CRD的资源yaml文件，并部署
  8. 运行Operator
  9. 创建CR

具体实现

完整代码：https://github.com/EchoGroot/operator-demo

基于k8s官方的sample-controller进行修改

  1. git clone https://github.com/kubernetes/sample-controller.git

  2. 修改go.mod里的项目名

  3. 修改hack/update-codegen.sh里的项目名，output-base路径

  4. 执行go mod vendor下载依赖

  5. 目录结构

    .
├── README.md
├── artifacts
│   └── crd
├── controller.go
├── go.mod
├── go.sum
├── hack
│   ├── boilerplate.go.txt
│   ├── custom-boilerplate.go.txt
│   ├── tools.go
│   ├── update-codegen.sh # 生成代码的脚本
│   └── verify-codegen.sh
├── main.go
├── pkg
│   ├── apis # CR struct定义
│   ├── generated # 基于CR生成的 client, informers, listers
│   └── signals
└── vendor

定义CRD的struct

文件路径：pkg/apis/appcontroller/v1alpha1/types.go

package v1alpha1

import (
    metav1 "k8s.io/apimachinery/pkg/apis/meta/v1"
)

// +genclient
// +k8s:deepcopy-gen:interfaces=k8s.io/apimachinery/pkg/runtime.Object

// App is a specification for a App resource
type App struct {
    metav1.TypeMeta   `json:",inline"`
    metav1.ObjectMeta `json:"metadata,omitempty"`

    Spec   AppSpec   `json:"spec"`
    Status AppStatus `json:"status"`
}

// AppSpec is the spec for a App resource
type AppSpec struct {
    Deployment DeploymentSpec `json:"deployment"`
    Service    ServiceSpec    `json:"service"`
    Ingress    IngressSpec    `json:"ingress"`
}

type DeploymentSpec struct {
    Name     string `json:"name"`
    Image    string `json:"image"`
    Replicas int32  `json:"replicas"`
}

type ServiceSpec struct {
    Name string `json:"name"`
}

type IngressSpec struct {
    Name string `json:"name"`
}

// AppStatus is the status for a App resource
type AppStatus struct {
}

// +k8s:deepcopy-gen:interfaces=k8s.io/apimachinery/pkg/runtime.Object

// AppList is a list of App resources
type AppList struct {
    metav1.TypeMeta `json:",inline"`
    metav1.ListMeta `json:"metadata"`

    Items []App `json:"items"`
}

使用 code-generator 生成CR的 client, informers, listers, deep-copy

执行./hack/update-codegen.sh ，pkg/generated下的代码会被重新生成

向k8s注册CR

生成的代码里通过init函数会自动注册CR。

向informer注册CR的事件

在main.go里初始化操作k8s内建资源的clientset，以及查询资源、监听CR事件的informer。

package main

import (
    "flag"
    "time"

    "app-controller/pkg/signals"
    kubeinformers "k8s.io/client-go/informers"
    "k8s.io/client-go/kubernetes"
    "k8s.io/client-go/tools/clientcmd"
    "k8s.io/klog/v2"
    // Uncomment the following line to load the gcp plugin (only required to authenticate against GKE clusters).
    // _ "k8s.io/client-go/plugin/pkg/client/auth/gcp"

    clientset "app-controller/pkg/generated/clientset/versioned"
    informers "app-controller/pkg/generated/informers/externalversions"
)

var (
    masterURL  string
    kubeconfig string
)

func main() {
    klog.InitFlags(nil)
    flag.Parse()

    // set up signals so we handle the shutdown signal gracefully
    ctx := signals.SetupSignalHandler()
    logger := klog.FromContext(ctx)

    cfg, err := clientcmd.BuildConfigFromFlags(masterURL, kubeconfig)
    if err != nil {
        logger.Error(err, "Error building kubeconfig")
        klog.FlushAndExit(klog.ExitFlushTimeout, 1)
    }

    // 操作k8s内建资源
    kubeClient, err := kubernetes.NewForConfig(cfg)
    if err != nil {
        logger.Error(err, "Error building kubernetes clientset")
        klog.FlushAndExit(klog.ExitFlushTimeout, 1)
    }

    // 操作自定义资源
    appClient, err := clientset.NewForConfig(cfg)
    if err != nil {
        logger.Error(err, "Error building kubernetes clientset")
        klog.FlushAndExit(klog.ExitFlushTimeout, 1)
    }

    kubeInformerFactory := kubeinformers.NewSharedInformerFactory(kubeClient, time.Second*30)
    appInformerFactory := informers.NewSharedInformerFactory(appClient, time.Second*30)

    controller := NewController(ctx, kubeClient, appClient,
        kubeInformerFactory.Apps().V1().Deployments(),
        kubeInformerFactory.Core().V1().Services(),
        kubeInformerFactory.Networking().V1().Ingresses(),
        appInformerFactory.Appcontroller().V1alpha1().Apps())

    // notice that there is no need to run Start methods in a separate goroutine. (i.e. go kubeInformerFactory.Start(ctx.done())
    // Start method is non-blocking and runs all registered informers in a dedicated goroutine.
    kubeInformerFactory.Start(ctx.Done())
    appInformerFactory.Start(ctx.Done())

    if err = controller.Run(ctx, 2); err != nil {
        logger.Error(err, "Error running controller")
        klog.FlushAndExit(klog.ExitFlushTimeout, 1)
    }
}

func init() {
    flag.StringVar(&kubeconfig, "kubeconfig", "/Users/xxx/.kube/config", "Path to a kubeconfig. Only required if out-of-cluster.")
    flag.StringVar(&masterURL, "master", "", "The address of the Kubernetes API server. Overrides any value in kubeconfig. Only required if out-of-cluster.")
}
  • 注册CR创建、更新的事件
appInformer.Informer().AddEventHandler(cache.ResourceEventHandlerFuncs{
        AddFunc: controller.enqueueApp,
        UpdateFunc: func(old, new interface{}) {
            controller.enqueueApp(new)
        },
    })
  • 删除CR不用管，通过指定产品服务deployment、service、ingress的OwnerReferences为CR，实现当CR删除时，对应的deployment、service、ingress也会被删除。

在CR的事件处理函数中，创建产品服务的deployment, service, ingress

  deployment, err := c.deploymentsLister.Deployments(namespace).Get(app.Spec.Deployment.Name)
    if errors.IsNotFound(err) {
        deployment, err = c.kubeclientset.AppsV1().Deployments(app.Namespace).Create(ctx, newDeployment(app), metav1.CreateOptions{})
    }
    if err != nil {
        return err
    }
func newDeployment(app *appv1alpha1.App) *appsv1.Deployment {
    labels := map[string]string{
        "app":        "app-deployment",
        "controller": app.Name,
    }
    return &appsv1.Deployment{
        ObjectMeta: metav1.ObjectMeta{
            Name:      app.Spec.Deployment.Name,
            Namespace: app.Namespace,
            OwnerReferences: []metav1.OwnerReference{
                *metav1.NewControllerRef(app, appv1alpha1.SchemeGroupVersion.WithKind("App")),
            },
        },
        Spec: appsv1.DeploymentSpec{
            Replicas: &app.Spec.Deployment.Replicas,
            Selector: &metav1.LabelSelector{
                MatchLabels: labels,
            },
            Template: corev1.PodTemplateSpec{
                ObjectMeta: metav1.ObjectMeta{
                    Labels: labels,
                },
                Spec: corev1.PodSpec{
                    Containers: []corev1.Container{
                        {
                            Name:  app.Spec.Deployment.Name,
                            Image: app.Spec.Deployment.Image,
                        },
                    },
                },
            },
        },
    }
}

使用controller-gen生成CRD的资源yaml文件，并部署

  1. 运行controller-gen crd paths=./... output:crd:dir=artifacts/crd，即可生成artifacts/crd/appcontroller.yuyy.com_apps.yaml
---
apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
  annotations:
    controller-gen.kubebuilder.io/version: v0.14.0
  name: apps.appcontroller.yuyy.com
spec:
  group: appcontroller.yuyy.com
  names:
    kind: App
    listKind: AppList
    plural: apps
    singular: app
  scope: Namespaced
  versions:
  - name: v1alpha1
    schema:
      openAPIV3Schema:
        description: App is a specification for a App resource
        properties:
          apiVersion:
            description: |-
              APIVersion defines the versioned schema of this representation of an object.
              Servers should convert recognized schemas to the latest internal value, and
              may reject unrecognized values.
              More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#resources
            type: string
          kind:
            description: |-
              Kind is a string value representing the REST resource this object represents.
              Servers may infer this from the endpoint the client submits requests to.
              Cannot be updated.
              In CamelCase.
              More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#types-kinds
            type: string
          metadata:
            type: object
          spec:
            description: AppSpec is the spec for a App resource
            properties:
              deployment:
                properties:
                  image:
                    type: string
                  name:
                    type: string
                  replicas:
                    format: int32
                    type: integer
                required:
                - image
                - name
                - replicas
                type: object
              ingress:
                properties:
                  name:
                    type: string
                required:
                - name
                type: object
              service:
                properties:
                  name:
                    type: string
                required:
                - name
                type: object
            required:
            - deployment
            - ingress
            - service
            type: object
          status:
            description: AppStatus is the status for a App resource
            type: object
        required:
        - spec
        - status
        type: object
    served: true
    storage: true

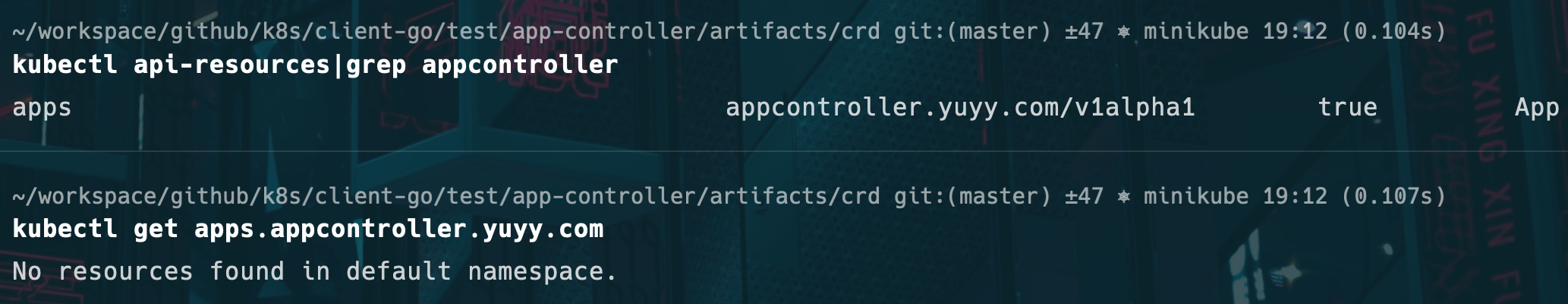

  1. kubectl apply

    image-20240121191324928

运行Operator

创建CR

  1. artifacts/crd/example.app.yaml

    apiVersion: appcontroller.yuyy.com/v1alpha1
kind: App
metadata:
 name: app-demo
spec:
 deployment:
   image: "nginx"
   name: app-deployment-demo
   replicas: 2
 service:
   name: app-service-demo
 ingress:
   name: app-ingress-demo

status: { }

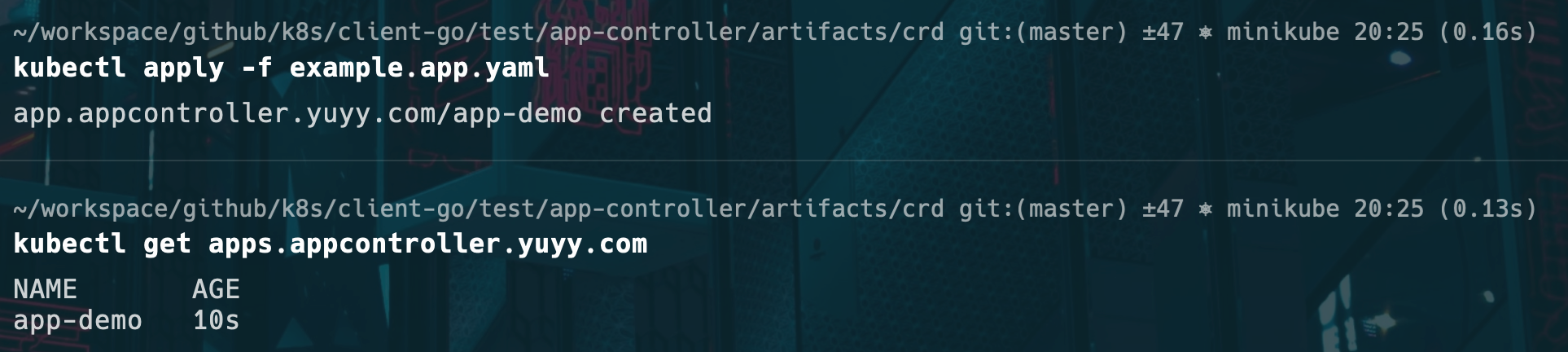

  2. kubectl apply

    image-20240121202557820

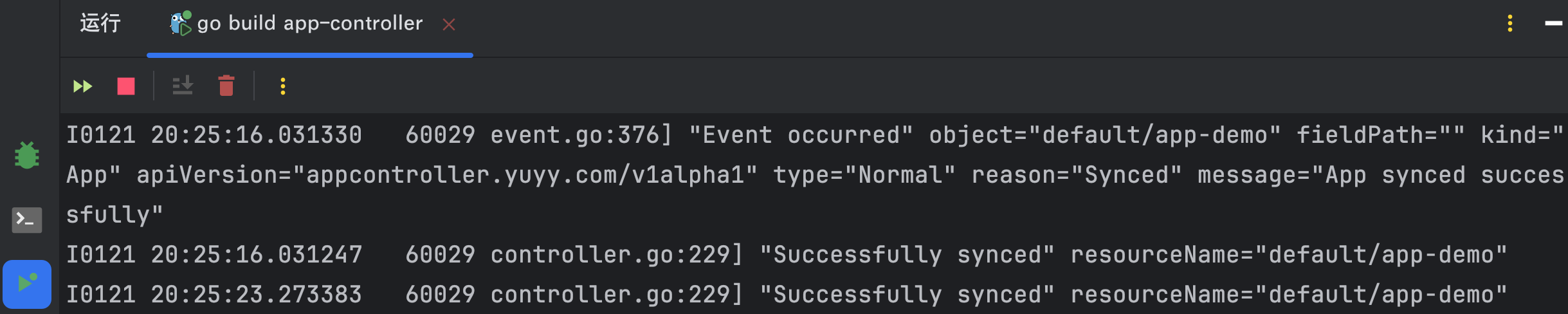

  3. Operator开始工作

    image-20240121202742394

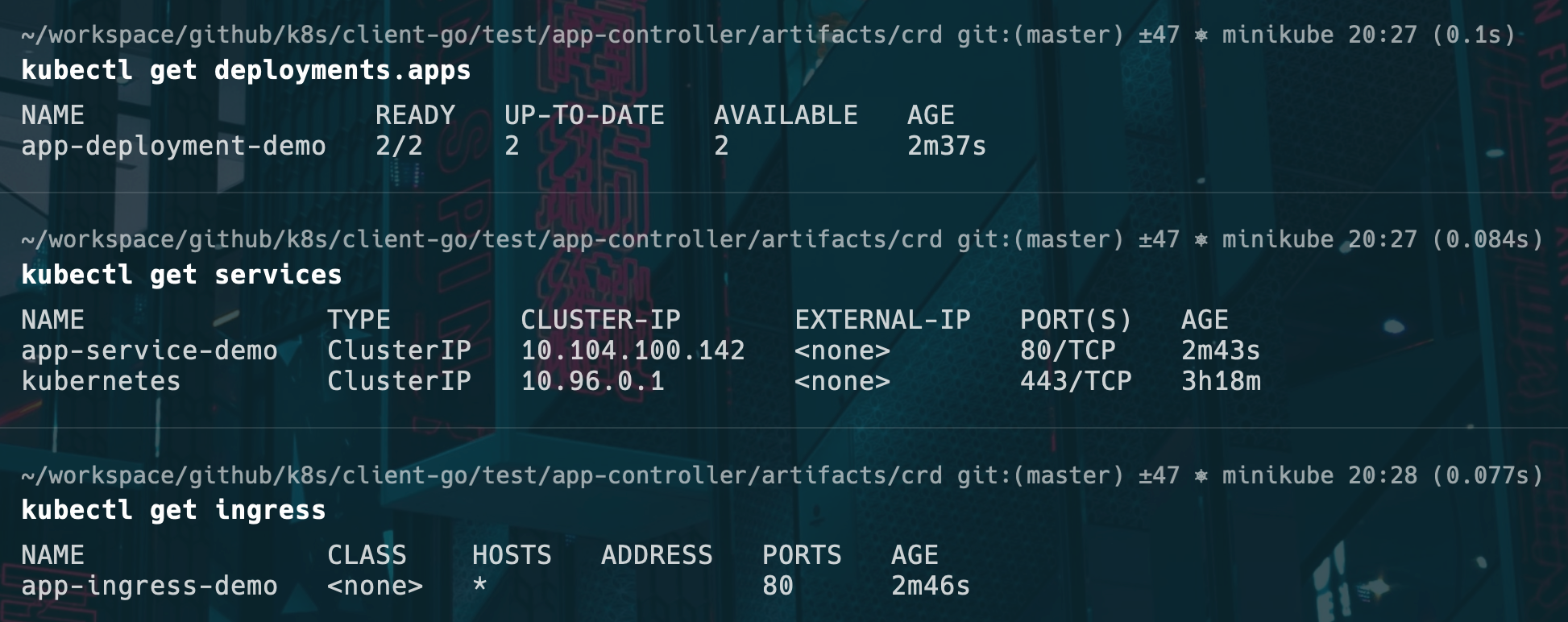

  4. 成功创建资源

    image-20240121202833433

完整的controller.go

package main

import (
    "context"
    "fmt"
    "k8s.io/api/networking/v1"
    "k8s.io/apimachinery/pkg/util/intstr"
    coreinformers "k8s.io/client-go/informers/core/v1"
    networkinformers "k8s.io/client-go/informers/networking/v1"
    corelisters "k8s.io/client-go/listers/core/v1"
    networklisters "k8s.io/client-go/listers/networking/v1"
    "time"

    "golang.org/x/time/rate"

    appsv1 "k8s.io/api/apps/v1"
    corev1 "k8s.io/api/core/v1"
    "k8s.io/apimachinery/pkg/api/errors"
    metav1 "k8s.io/apimachinery/pkg/apis/meta/v1"
    utilruntime "k8s.io/apimachinery/pkg/util/runtime"
    "k8s.io/apimachinery/pkg/util/wait"
    appsinformers "k8s.io/client-go/informers/apps/v1"
    "k8s.io/client-go/kubernetes"
    "k8s.io/client-go/kubernetes/scheme"
    typedcorev1 "k8s.io/client-go/kubernetes/typed/core/v1"
    appslisters "k8s.io/client-go/listers/apps/v1"
    "k8s.io/client-go/tools/cache"
    "k8s.io/client-go/tools/record"
    "k8s.io/client-go/util/workqueue"
    "k8s.io/klog/v2"

    appv1alpha1 "app-controller/pkg/apis/appcontroller/v1alpha1"
    clientset "app-controller/pkg/generated/clientset/versioned"
    appscheme "app-controller/pkg/generated/clientset/versioned/scheme"
    informers "app-controller/pkg/generated/informers/externalversions/appcontroller/v1alpha1"
    listers "app-controller/pkg/generated/listers/appcontroller/v1alpha1"
)

const controllerAgentName = "app-controller"

const (
    // SuccessSynced is used as part of the Event 'reason' when a App is synced
    SuccessSynced = "Synced"
    // ErrResourceExists is used as part of the Event 'reason' when a App fails
    // to sync due to a Deployment of the same name already existing.
    ErrResourceExists = "ErrResourceExists"

    // MessageResourceExists is the message used for Events when a resource
    // fails to sync due to a Deployment already existing
    MessageResourceExists = "Resource %q already exists and is not managed by App"
    // MessageResourceSynced is the message used for an Event fired when a App
    // is synced successfully
    MessageResourceSynced = "App synced successfully"
)

// Controller is the controller implementation for App resources
type Controller struct {
    // kubeclientset is a standard kubernetes clientset
    kubeclientset kubernetes.Interface
    // appclientset is a clientset for our own API group
    appclientset clientset.Interface

    deploymentsLister appslisters.DeploymentLister
    deploymentsSynced cache.InformerSynced
    servicesLister    corelisters.ServiceLister
    servicesSynced    cache.InformerSynced
    ingressesLister   networklisters.IngressLister
    ingressesSynced   cache.InformerSynced
    appsLister        listers.AppLister
    appsSynced        cache.InformerSynced

    // workqueue is a rate limited work queue. This is used to queue work to be
    // processed instead of performing it as soon as a change happens. This
    // means we can ensure we only process a fixed amount of resources at a
    // time, and makes it easy to ensure we are never processing the same item
    // simultaneously in two different workers.
    workqueue workqueue.RateLimitingInterface
    // recorder is an event recorder for recording Event resources to the
    // Kubernetes API.
    recorder record.EventRecorder
}

// NewController returns a new app controller
func NewController(ctx context.Context, kubeclientset kubernetes.Interface, appclientset clientset.Interface, deploymentInformer appsinformers.DeploymentInformer, serviceInformer coreinformers.ServiceInformer, ingressInformer networkinformers.IngressInformer, appInformer informers.AppInformer) *Controller {
    logger := klog.FromContext(ctx)

    // Create event broadcaster
    // Add app-controller types to the default Kubernetes Scheme so Events can be
    // logged for app-controller types.
    utilruntime.Must(appscheme.AddToScheme(scheme.Scheme))
    logger.V(4).Info("Creating event broadcaster")

    eventBroadcaster := record.NewBroadcaster()
    eventBroadcaster.StartStructuredLogging(0)
    eventBroadcaster.StartRecordingToSink(&typedcorev1.EventSinkImpl{Interface: kubeclientset.CoreV1().Events("")})
    recorder := eventBroadcaster.NewRecorder(scheme.Scheme, corev1.EventSource{Component: controllerAgentName})
    ratelimiter := workqueue.NewMaxOfRateLimiter(
        workqueue.NewItemExponentialFailureRateLimiter(5*time.Millisecond, 1000*time.Second),
        &workqueue.BucketRateLimiter{Limiter: rate.NewLimiter(rate.Limit(50), 300)},
    )

    controller := &Controller{
        kubeclientset:     kubeclientset,
        appclientset:      appclientset,
        deploymentsLister: deploymentInformer.Lister(),
        deploymentsSynced: deploymentInformer.Informer().HasSynced,
        servicesLister:    serviceInformer.Lister(),
        servicesSynced:    serviceInformer.Informer().HasSynced,
        ingressesLister:   ingressInformer.Lister(),
        ingressesSynced:   ingressInformer.Informer().HasSynced,
        appsLister:        appInformer.Lister(),
        appsSynced:        appInformer.Informer().HasSynced,
        workqueue:         workqueue.NewRateLimitingQueue(ratelimiter),
        recorder:          recorder,
    }

    logger.Info("Setting up event handlers")
    // Set up an event handler for when App resources change
    appInformer.Informer().AddEventHandler(cache.ResourceEventHandlerFuncs{
        AddFunc: controller.enqueueApp,
        UpdateFunc: func(old, new interface{}) {
            controller.enqueueApp(new)
        },
    })

    return controller
}

// Run will set up the event handlers for types we are interested in, as well
// as syncing informer caches and starting workers. It will block until stopCh
// is closed, at which point it will shutdown the workqueue and wait for
// workers to finish processing their current work items.
func (c *Controller) Run(ctx context.Context, workers int) error {
    defer utilruntime.HandleCrash()
    defer c.workqueue.ShutDown()
    logger := klog.FromContext(ctx)

    // Start the informer factories to begin populating the informer caches
    logger.Info("Starting App controller")

    // Wait for the caches to be synced before starting workers
    logger.Info("Waiting for informer caches to sync")

    if ok := cache.WaitForCacheSync(ctx.Done(), c.deploymentsSynced, c.servicesSynced, c.ingressesSynced, c.appsSynced); !ok {
        return fmt.Errorf("failed to wait for caches to sync")
    }

    logger.Info("Starting workers", "count", workers)
    // Launch two workers to process App resources
    for i := 0; i < workers; i++ {
        go wait.UntilWithContext(ctx, c.runWorker, time.Second)
    }

    logger.Info("Started workers")
    <-ctx.Done()
    logger.Info("Shutting down workers")

    return nil
}

// runWorker is a long-running function that will continually call the
// processNextWorkItem function in order to read and process a message on the
// workqueue.
func (c *Controller) runWorker(ctx context.Context) {
    for c.processNextWorkItem(ctx) {
    }
}

// processNextWorkItem will read a single work item off the workqueue and
// attempt to process it, by calling the syncHandler.
func (c *Controller) processNextWorkItem(ctx context.Context) bool {
    obj, shutdown := c.workqueue.Get()
    logger := klog.FromContext(ctx)

    if shutdown {
        return false
    }

    // We wrap this block in a func so we can defer c.workqueue.Done.
    err := func(obj interface{}) error {
        // We call Done here so the workqueue knows we have finished
        // processing this item. We also must remember to call Forget if we
        // do not want this work item being re-queued. For example, we do
        // not call Forget if a transient error occurs, instead the item is
        // put back on the workqueue and attempted again after a back-off
        // period.
        defer c.workqueue.Done(obj)
        var key string
        var ok bool
        // We expect strings to come off the workqueue. These are of the
        // form namespace/name. We do this as the delayed nature of the
        // workqueue means the items in the informer cache may actually be
        // more up to date that when the item was initially put onto the
        // workqueue.
        if key, ok = obj.(string); !ok {
            // As the item in the workqueue is actually invalid, we call
            // Forget here else we'd go into a loop of attempting to
            // process a work item that is invalid.
            c.workqueue.Forget(obj)
            utilruntime.HandleError(fmt.Errorf("expected string in workqueue but got %#v", obj))
            return nil
        }
        // Run the syncHandler, passing it the namespace/name string of the
        // App resource to be synced.
        if err := c.syncHandler(ctx, key); err != nil {
            // Put the item back on the workqueue to handle any transient errors.
            c.workqueue.AddRateLimited(key)
            return fmt.Errorf("error syncing '%s': %s, requeuing", key, err.Error())
        }
        // Finally, if no error occurs we Forget this item so it does not
        // get queued again until another change happens.
        c.workqueue.Forget(obj)
        logger.Info("Successfully synced", "resourceName", key)
        return nil
    }(obj)

    if err != nil {
        utilruntime.HandleError(err)
        return true
    }

    return true
}

// syncHandler compares the actual state with the desired, and attempts to
// converge the two. It then updates the Status block of the App resource
// with the current status of the resource.
func (c *Controller) syncHandler(ctx context.Context, key string) error {
    // Convert the namespace/name string into a distinct namespace and name

    namespace, name, err := cache.SplitMetaNamespaceKey(key)
    if err != nil {
        utilruntime.HandleError(fmt.Errorf("invalid resource key: %s", key))
        return nil
    }

    // Get the App resource with this namespace/name
    app, err := c.appsLister.Apps(namespace).Get(name)
    if err != nil {
        // The App resource may no longer exist, in which case we stop
        // processing.
        if errors.IsNotFound(err) {
            utilruntime.HandleError(fmt.Errorf("app '%s' in work queue no longer exists", key))
            return nil
        }

        return err
    }

    deployment, err := c.deploymentsLister.Deployments(namespace).Get(app.Spec.Deployment.Name)
    if errors.IsNotFound(err) {
        deployment, err = c.kubeclientset.AppsV1().Deployments(app.Namespace).Create(ctx, newDeployment(app), metav1.CreateOptions{})
    }
    if err != nil {
        return err
    }

    // service
    service, err := c.servicesLister.Services(namespace).Get(app.Spec.Service.Name)
    if errors.IsNotFound(err) {
        service, err = c.kubeclientset.CoreV1().Services(namespace).Create(ctx, newService(app), metav1.CreateOptions{})
    }
    if err != nil {
        return err
    }

    // ingress
    ingress, err := c.ingressesLister.Ingresses(namespace).Get(app.Spec.Ingress.Name)
    if errors.IsNotFound(err) {
        ingress, err = c.kubeclientset.NetworkingV1().Ingresses(namespace).Create(ctx, newIngress(app), metav1.CreateOptions{})
    }

    // If an error occurs during Get/Create, we'll requeue the item so we can
    // attempt processing again later. This could have been caused by a
    // temporary network failure, or any other transient reason.
    if err != nil {
        return err
    }

    // If the Deployment is not controlled by this App resource, we should log
    // a warning to the event recorder and return error msg.
    if !metav1.IsControlledBy(deployment, app) {
        msg := fmt.Sprintf(MessageResourceExists, deployment.Name)
        c.recorder.Event(app, corev1.EventTypeWarning, ErrResourceExists, msg)
        return fmt.Errorf("%s", msg)
    }
    if !metav1.IsControlledBy(service, app) {
        msg := fmt.Sprintf(MessageResourceExists, service.Name)
        c.recorder.Event(app, corev1.EventTypeWarning, ErrResourceExists, msg)
        return fmt.Errorf("%s", msg)
    }
    if !metav1.IsControlledBy(ingress, app) {
        msg := fmt.Sprintf(MessageResourceExists, ingress.Name)
        c.recorder.Event(app, corev1.EventTypeWarning, ErrResourceExists, msg)
        return fmt.Errorf("%s", msg)
    }

    c.recorder.Event(app, corev1.EventTypeNormal, SuccessSynced, MessageResourceSynced)
    return nil
}

// enqueueApp takes a App resource and converts it into a namespace/name
// string which is then put onto the work queue. This method should *not* be
// passed resources of any type other than App.
func (c *Controller) enqueueApp(obj interface{}) {
    var key string
    var err error
    if key, err = cache.MetaNamespaceKeyFunc(obj); err != nil {
        utilruntime.HandleError(err)
        return
    }
    c.workqueue.Add(key)
}

// handleObject will take any resource implementing metav1.Object and attempt
// to find the App resource that 'owns' it. It does this by looking at the
// objects metadata.ownerReferences field for an appropriate OwnerReference.
// It then enqueues that App resource to be processed. If the object does not
// have an appropriate OwnerReference, it will simply be skipped.
func (c *Controller) handleObject(obj interface{}) {
    var object metav1.Object
    var ok bool
    logger := klog.FromContext(context.Background())
    if object, ok = obj.(metav1.Object); !ok {
        tombstone, ok := obj.(cache.DeletedFinalStateUnknown)
        if !ok {
            utilruntime.HandleError(fmt.Errorf("error decoding object, invalid type"))
            return
        }
        object, ok = tombstone.Obj.(metav1.Object)
        if !ok {
            utilruntime.HandleError(fmt.Errorf("error decoding object tombstone, invalid type"))
            return
        }
        logger.V(4).Info("Recovered deleted object", "resourceName", object.GetName())
    }
    logger.V(4).Info("Processing object", "object", klog.KObj(object))
    if ownerRef := metav1.GetControllerOf(object); ownerRef != nil {
        // If this object is not owned by a App, we should not do anything more
        // with it.
        if ownerRef.Kind != "App" {
            return
        }

        app, err := c.appsLister.Apps(object.GetNamespace()).Get(ownerRef.Name)
        if err != nil {
            logger.V(4).Info("Ignore orphaned object", "object", klog.KObj(object), "app", ownerRef.Name)
            return
        }

        c.enqueueApp(app)
        return
    }
}

// newDeployment creates a new Deployment for a App resource. It also sets
// the appropriate OwnerReferences on the resource so handleObject can discover
// the App resource that 'owns' it.
func newDeployment(app *appv1alpha1.App) *appsv1.Deployment {
    labels := map[string]string{
        "app":        "app-deployment",
        "controller": app.Name,
    }
    return &appsv1.Deployment{
        ObjectMeta: metav1.ObjectMeta{
            Name:      app.Spec.Deployment.Name,
            Namespace: app.Namespace,
            OwnerReferences: []metav1.OwnerReference{
                *metav1.NewControllerRef(app, appv1alpha1.SchemeGroupVersion.WithKind("App")),
            },
        },
        Spec: appsv1.DeploymentSpec{
            Replicas: &app.Spec.Deployment.Replicas,
            Selector: &metav1.LabelSelector{
                MatchLabels: labels,
            },
            Template: corev1.PodTemplateSpec{
                ObjectMeta: metav1.ObjectMeta{
                    Labels: labels,
                },
                Spec: corev1.PodSpec{
                    Containers: []corev1.Container{
                        {
                            Name:  app.Spec.Deployment.Name,
                            Image: app.Spec.Deployment.Image,
                        },
                    },
                },
            },
        },
    }
}

func newIngress(app *appv1alpha1.App) *v1.Ingress {
    prefix := v1.PathTypePrefix
    return &v1.Ingress{
        ObjectMeta: metav1.ObjectMeta{
            Name:      app.Spec.Ingress.Name,
            Namespace: app.Namespace,
            OwnerReferences: []metav1.OwnerReference{
                *metav1.NewControllerRef(app, appv1alpha1.SchemeGroupVersion.WithKind("App")),
            },
        },
        Spec: v1.IngressSpec{
            Rules: []v1.IngressRule{
                {
                    IngressRuleValue: v1.IngressRuleValue{
                        HTTP: &v1.HTTPIngressRuleValue{
                            Paths: []v1.HTTPIngressPath{
                                {
                                    PathType: &prefix,
                                    Path:     "/",
                                    Backend: v1.IngressBackend{
                                        Service: &v1.IngressServiceBackend{
                                            Name: app.Spec.Service.Name,
                                            Port: v1.ServiceBackendPort{Number: 80},
                                        },
                                    },
                                },
                            },
                        },
                    },
                },
            },
        },
    }

}

func newService(app *appv1alpha1.App) *corev1.Service {
    labels := map[string]string{
        "app":        "app-deployment",
        "controller": app.Name,
    }
    return &corev1.Service{
        ObjectMeta: metav1.ObjectMeta{
            Name:      app.Spec.Service.Name,
            Namespace: app.Namespace,
            OwnerReferences: []metav1.OwnerReference{
                *metav1.NewControllerRef(app, appv1alpha1.SchemeGroupVersion.WithKind("App")),
            },
        },
        Spec: corev1.ServiceSpec{
            Selector: labels,
            Ports: []corev1.ServicePort{
                {
                    Protocol: corev1.ProtocolTCP,
                    Port:     80,
                    TargetPort: intstr.IntOrString{
                        IntVal: 80,
                    },
                },
            },
        },
    }
}
Post Views: 434
作者：Yuyy
博客：https://yuyy.info
暂无评论

发送评论 编辑评论

































































































|´・ω・)ノ
ヾ(≧∇≦*)ゝ
(☆ω☆)
（╯‵□′）╯︵┴─┴
￣﹃￣
(/ω＼)
∠( ᐛ 」∠)＿
(๑•̀ㅁ•́ฅ)
→_→
୧(๑•̀⌄•́๑)૭
٩(ˊᗜˋ*)و
(ノ°ο°)ノ
(´இ皿இ｀)
⌇●﹏●⌇
(ฅ´ω`ฅ)
(╯°A°)╯︵○○○
φ(￣∇￣o)
ヾ(´･ ･｀｡)ノ"
( ง ᵒ̌皿ᵒ̌)ง⁼³₌₃
(ó﹏ò｡)
Σ(っ °Д °;)っ
( ,,´･ω･)ﾉ"(´っω･｀｡)
╮(╯▽╰)╭
o(*////▽////*)q
＞﹏＜
( ๑´•ω•) "(ㆆᴗㆆ)
😂
😀
😅
😊
🙂
🙃
😌
😍
😘
😜
😝
😏
😒
🙄
😳
😡
😔
😫
😱
😭
💩
👻
🙌
🖕
👍
👫
👬
👭
🌚
🌝
🙈
💊
😶
🙏
🍦
🍉
😣
Source: github.com/k4yt3x/flowerhd





颜文字
Emoji
小恐龙
花!


















上一篇
下一篇




			        推荐文章





Gitlab CI/CD 实践一：Gitlab Runner 安装到 K8S 集群





Gitlab CI/CD 实践三：Docker 安装 Gitlab Runner





Gitlab CI/CD 实践五：基础镜像 Dockerfile 仓库 CI 流水线配置





Gitlab CI/CD 实践二：Rook Ceph 创建 S3 bucket 用于 Gitlab Runner 缓存





通过Operator自动暴露集群内部服务





十二、可观测性——监控与日志





Pod里的容器如何设置IP？





【笔记】Operator课程(7-9)





使用Kubebuilder实现自定义Controller





十一、可观测性——你的应用健康吗
